1. Precision Dual-Axis Nozzle Movement:
The nozzle system features dual-axis linkage in the X and Y directions, driven by a stepping motor for precise positioning. The flexible programming control allows for complex processes, including partial secondary spraying and continuous spraying in specific areas, to meet varied manufacturing requirements.
2. Modular Preheating Flexibility (3-Stage Preheating):
The preheating modules offer a free combination of hot air and infrared heating. This flexibility allows for optimal preheating of PCB products, accommodating different process requirements and enhancing preheating efficiency and effectiveness.
3. Innovative Solder Pot and Crest Nozzle Design:
The newly designed solder pot features an adjustable tin wave drop, which significantly reduces the generation of tin dross, improving both material efficiency and product quality.
4. High-Capacity Rail Transport System:
The guide rail system boasts a maximum transport capacity of 60KG, thanks to an innovative transportation chain assembly structure and support method. This ensures a more stable transport speed and higher carrying capacity for heavier components.
5. Efficient Cooling System Design:
The cooling system is designed with an upper and lower blowing structure, allowing for flexible control of cooling efficiency to meet specific production needs.

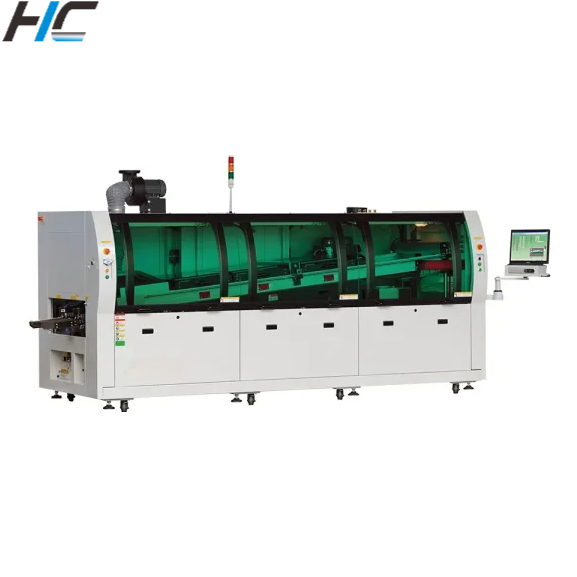

MODEL | US-350 | |
GENERAL | ||
Wave Soldering Outside Dimension(L*W*H) | 4350×1600×1730mm | |
Power Supply | 3P5W 380V AC 50/60Hz 100A | Option:3P5W 220V AC 50/60Hz 150A |
Power demand | 80KW (Total Power * 1.2 Safety Factor) Hot Air | |
Electrical Control | ||
Total power | 45KW （+6KW/PCS For Each Additional Preheating Module） | |
Operating power | ≤9KW | |
Control mode | PC＋PLC | |
Preheating System | ||
Preheat mode | Hot Air | IR |
Speed regulation mode | Stepless Frequency Control | N/A |
Preheat zones number | 3 | Option: Upper preheating（MAX 3PCS） |
Preheat zone length | 1800mm(2480mm optional 4 preheat） | |
Preheat temperature | Room Temperature ～250℃ | |
Welding System | ||
Working mode of tin furnace | Mechanical Pump | |
Power of heating tube of tin furnace | 14.5KW | |
Tin furnace capacity | Lead-free： About 480KG | |
MAX temp of tin furnace | MAX: 300℃ | |
Temp. control method | PID+SSR | |
Wave driving power | 1/4 HP×2 3P 220VAC | |
Warming up time | About 180 min（Set：250℃） | |
PCB Transport System | ||
Width range of PCB | 50-350mm | |
PCB board component height | Top 90mm,Bottom 25mm | |
PCB transmission speed | 300~1800mm/min | |
PCB inlet transport height | 750±20mm | Option: Booster Pad 100mm 150mm |
Transport guide rail inclination | Factory：5.5°±0.2°（4°— 7°Adjustable） | |
Transmission motor power | 90W 3P 220VAC | |
N2 System (Option) | ||
nitrogen consumption | 25m³/h below 1000ppm | |
pressure nitrogen source | 0.5～0.8MPa | |
Others | ||
Flux Automatic Addition | Equipped with corrosion-resistant air-operated diaphragm pump | |
Spray Flow | 20~100ml/min | |
Exhaust pipe dimeter | Φ200mm | |
Air cooler | Option | 2HP |
