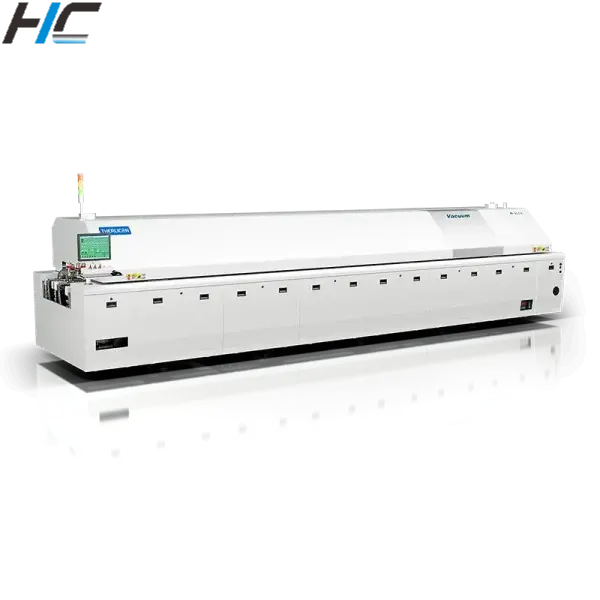

TRV Series Vacuum Assisted Reflow Oven

Independent temperature control zone, suitable for different temperatures;
Void area <1%, effectively addresses bubbles;
High-efficiency vacuum pump for fast pressure reduction;
Three-section conveyor: heating, vacuum, and cooling, adjustable individually;
Production cycle time of 40-60 seconds, high efficiency;
Efficient flux recovery system;
Low maintenance, with vacuum pressure of 10-5 mbar to solve void issues;
Temperature can be adjusted individually, meeting TI ≤ 90S and TP ≤ 240°C, supporting high throughput.

TRV Series
MODEL	TRV-800-N
GENERAL
Outside Dimension(LWH)	5520 x 1430x 1530mm
Standard Color	Computer Grey
Weight	Approx. 2500KG
Number Of Heating Zones	Up 8(1IR) / Bottom 7
Length Of Heating Zones	3110mm（With Vacuum Area）
Number Of Cooling Zones	Up 3 / Bottom 3 (Cool Air Conversion)
Exhaust Volume	10 m³ / min x 2 (Exhausts)
Electric Supply Required	3 phase, 380V 50/60Hz (Optional: 3 phase, 220V 50/60Hz)
Electric Power Required	67KW
Power For Warm Up	32KW
Power Consumption	10KW
Vacuum Level	5 mbar～10 mbar
Warming Time	About Approx. 25 minute
Temp. Setting Range	Room Temp. — 300℃
Temperature Control Method	PID Close Loop Control + SSR Driving
Temperature Control Precision	± 1.0℃
Temperature Deviation on PCB	± 1.5℃ (by JT Board Test Standard)
Heating Element	Especial Heating elements For Long Life
Commutated Element	Aluminium Alloy Plate
Data Storage	Process Data and Status Storage
Abnormal Alarm	Abnormal Temperature (Extra-high / Extra-low Temp.)
Board Dropped Alarm	Tower Light: Yellow–Warming; Green-Normal; Red-Abnormal
Conveyor	chain conveyor
Rail Structure	Subsection Integrated Type
Rang Width Of PCB	Single Lane min70mm-max430mm； Dual Lane min70mm-max250mm
Rang Length Of PCB	min150mm-max300mm
chiller	Standard
Flux Collection System	Standard
N2 Control Device	Standard
Oxygen Analyser	Standard
