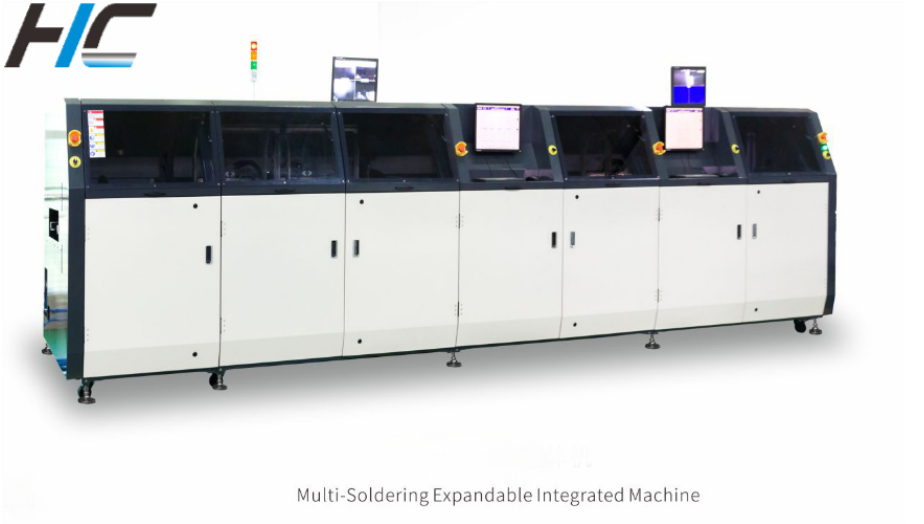

Product features:
The maximum width of PCB passing through the board can reach 610m
Spray+preheating+welding module, complete and integrated design
Dual tin furnace design and support for independent lifting and lowering
Offline programming/Gerber file import capability
Dual tin furnace design and support for independent lifting and lowering
Fully automated welding of double-sided board components
The movement speed of the peak nozzle is adjustable
CCD visualization during welding process
l Spray Fluxer+Preheating+Soldering module,integrated design,flexible configuration and free expansion;
l The point soldering module and the group soldering module are freely matched and combined;
l The most efficient selective soldering module;
l Sectional modular transmission structure.

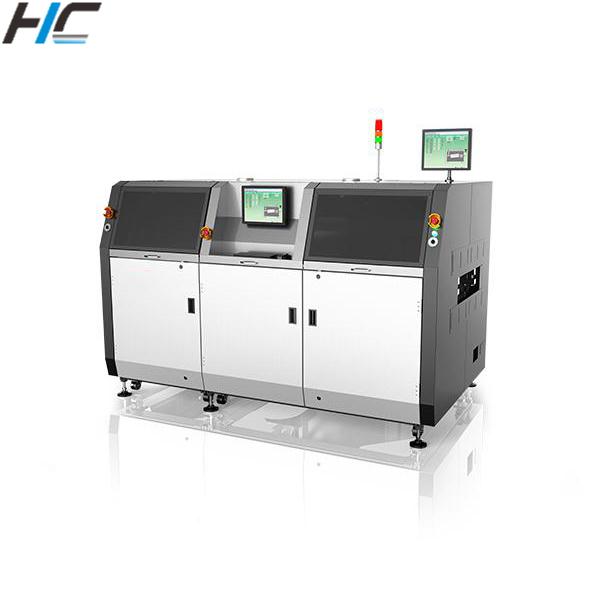

Model | SH-3D-450 |
Parameters | |
Dimension L×W×H | 2600×1800×1600mm(1-2pot) |
Transporting system | |
PCB Width | 60-450mm |
PCB Length | 120-500mm |
PCB Top Space | Max:120mm |
PCB Bottom Space | Max: 50mm |
PCB Edge Size | 4mm |
Conveyor Height | 900±20 |
Conveying Speed | 0.2-10m/min |
PCB Weight | Max:5kg |
Fluxer Module | |
Flux Capacity | 21 |
The Size ofFlux Nozzle Tube | 130um |
Flux Width | 2-8mm |
Preheating Module | |
Bottom movable Infrared Heater | Max:14kw |
Temperature Range | RoomTemperature-250C |
Top AirHeater | Max:6kw |
Soldering Module | |
Min Diameterof Solder Nozzle | 2/4.5 |
Wave Height | 3~5mm |
Solder Pot Capacity | 8KG |
Soldering Temperatu re | Max:350C |
Heating Time | 40min/(300C) |
Pot Heating Power | 1Kw/ Singlepot |
Location Speed | x/Y:2-200mm/s |
Temp.Control Accuraey | ±2°C |
SolderingAccuraey | ±0.25mm |
Control System | |
Pcoperating System | Windows 10 |
Process Visualization | CCD Visual |
software Language | ChineseandEnglishChangeable |
Programming Mode | Inline/offlineProgramming |
Data Import | Gerber，Image Introduction |
AirSystem | |
AirSupply | N2/O2 |
Required Pressure | 0.4-0.8Mpa |
N2Consumption | Eachconsumesabout1.5-2m³/h |
N2Concentration | ≥99.999% |
Electrical Parameter | |
PowerSupply | AC380VAC3φ5W 50/60Hz |
Consumption | 35KW |
AirExhaust | |
Air Duct Diameter | 150mm |
Exhaust Air Rate | 360m³/h |
