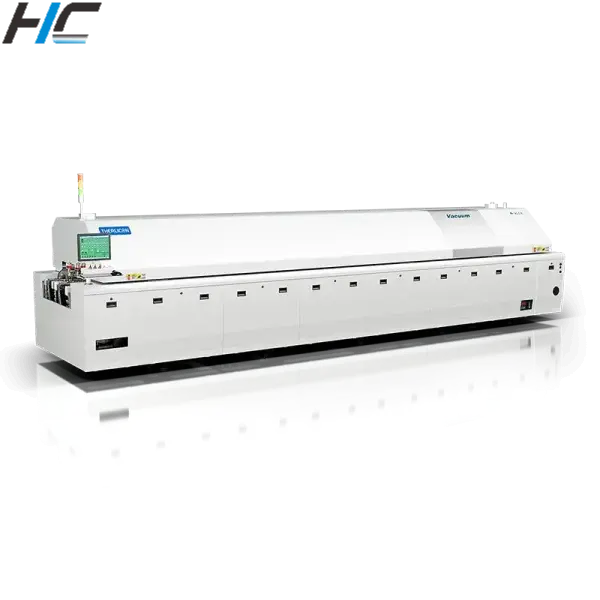

RS Series Lead Free Hot Air Reflow Oven
1. Independent Air Flow Control: Flexible adjustments for various lead-free processes
2. New Cooling Configuration: Recirculates air to reduce thermal loss and improve flux recovery
3. Extended Maintenance Period: Longer maintenance intervals for the oven chamber
4. New Air Management System: Significant energy savings and reduced power consumption and carbon emissions
5. Multi-Layer Insulated Chambers: Maintains lower surface temperatures
6. High Recyclability: 95% of materials can be recycled.
MODEL | RS-600III/RS-600III-N |
GENERAL | |
Outside Dimension(L*W*H) | 4190 x 1430 x 1530mm |
Weight | Approx. 1850KG/1950KG |
Number Of Heating Zones | Up 6 / Bottom 6 |
Length Of Heating Zones | 2295mm |
Number Of Cooling Zones | Up 1 / Bottom 1 |
Exhaust Volume | 10 m³ / min x 2 (Exhausts) |
Control System | |
Electric Supply Required | 3 phase, 380V 50/60Hz |
Electric Power Required | 48KW / 51KW |
Power For Warm Up | 24KW / 26KW |
Power Consumption | 6.5KW / 7KW |
Warming Time | Approx. 20 minute |
Temp. Setting Range | Room Temp. — 300℃ |
Temperature Control Method | PID Close Loop Control + SSR Driving |
Temperature Control Precision | ± 1.0℃ |
Temperature Deviation on PCB | ± 1.5℃ (by JT Board Test Standard) |
Commutated Element | Aluminium Alloy Plate |
Data Storage | Various prameters and status are storable |
Abnormal Alarm | Abnormal Temperature |
Board Dropped Alarm | Tower Light: Yellow–Warming; |
Conveyor System | |
Rail Structure | Subsection Integrated Type |
Max.Width Of PCB | 400mm (OPTION ：460mm) |
Range Of Rail Width/Adjustment | 50~400mm / Motorized |
Components Clearance | PCB Top 30mm/ Bottom 25mm |
Converyor Direction | L→R (Option: R→L) |
Fixed Rail Side | Front Rail Fixed (Option:Rear Rail Fixed) |
PCB Transmission Agent | Air-Reflow =Chain + Mesh ,( N2-Reflow = Chain only and Mesh optional) |
Converyor Height | 900±20mm |
Converyor Speed Range | 300～2000mm/min |
Lubrication Auto-Afflux | Standard |
Cooling System | |
Cooling Method | Standard：Forced-Air Type |
