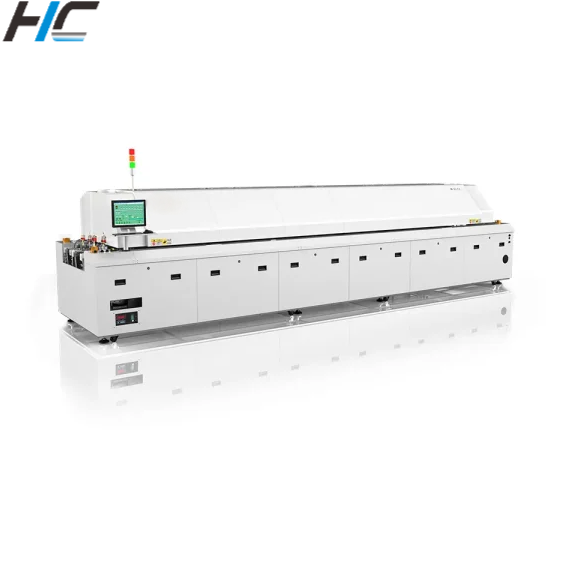

HCIC-800 Lead-free hot air reflow soldering machine

HCIC-800 Lead-free hot air reflow soldering machine

The TEA-800 Lead-Free Hot Air Reflow Soldering Machine is a high-performance, precision-controlled, and environmentally-friendly soldering solution, designed to meet the stringent soldering demands of modern electronics manufacturing. With its superior performance and reliability, the TEA-800 is the ideal choice for enhancing production quality and efficiency.

Heating zone configuration

Total number of heating zones: TEA-800 is equipped with 8 heating zones to ensure gradual and precise increase in temperature and even distribution.

Number of upper and lower heating zones: each equipped with 8 upper heating zones and 8 lower heating zones to make the hot air distribution more balanced, thereby ensuring the stability and reliability of welding.

cooling system

Cooling area: The equipment is equipped with 2 high-efficiency cooling areas to quickly reduce the PCB temperature, prevent solder joints from overheating, and ensure welding quality.

transmission system

Transmission speed: TEA-800 supports a transmission speed of 300-2000mm/min, which can flexibly respond to the needs of different production lines and can be adapted from rapid production to precise operations.

Transmission belt width: The standard transmission belt width of the equipment is 350mm, which can handle PCBs of various sizes and has strong adaptability.

Temperature control accuracy

Temperature control accuracy: ±1°C temperature control accuracy ensures the accuracy of welding temperature, avoids overheating or insufficient temperature, and improves welding quality.

Maximum temperature: The maximum temperature of TEA-800 can reach 300°C, adapting to various lead-free soldering process requirements.
