The New Generation Mid Speed Pick And Place Machine S2

The New Generation Mid Speed Pick And Place Machine S2

1.Structure: 2 Gantries x 10 spindles per head

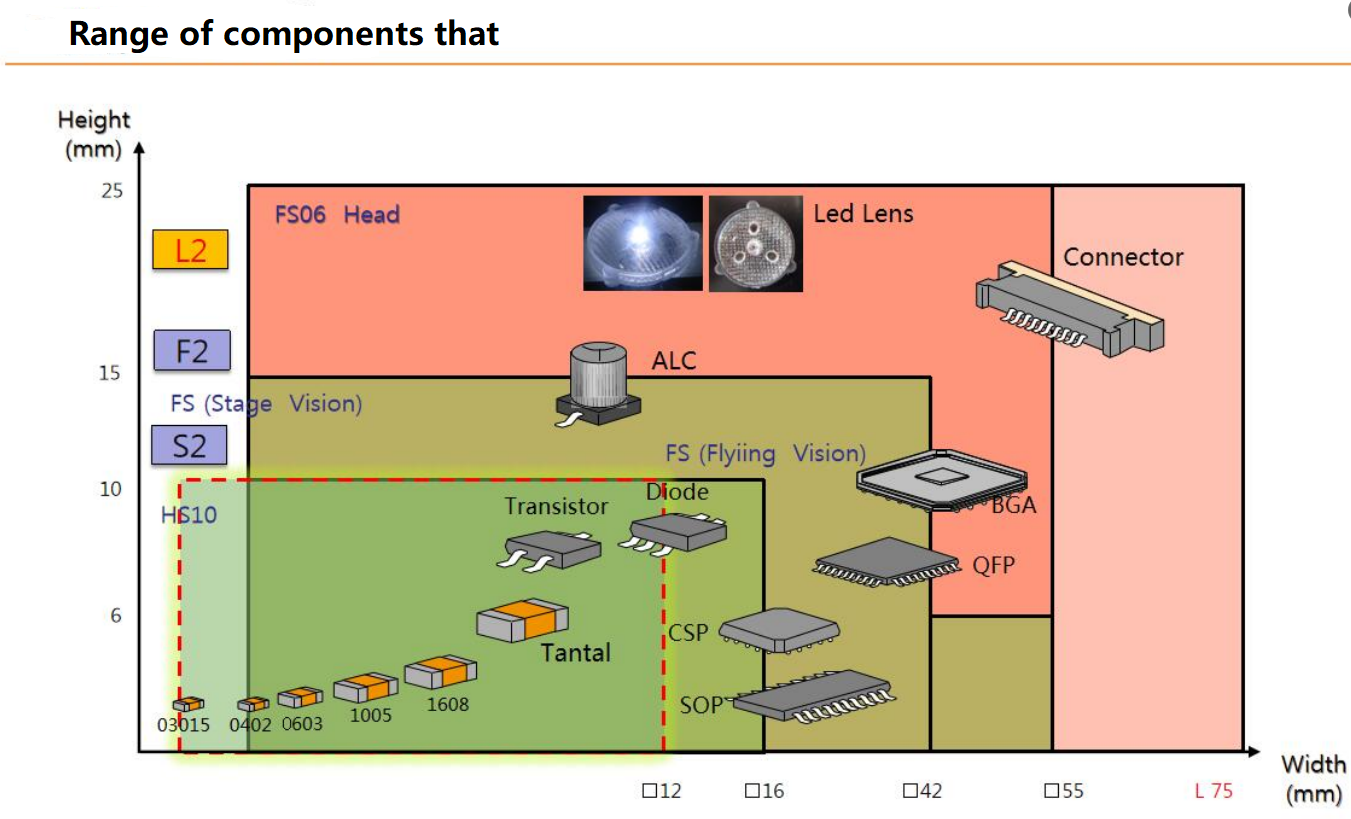

2.Speed: 92,000 CPH (Optimum, HS10-type)
3.Accuracy: ±28μm Cpk≥1.0 (03015), ±25μm Cpk≥1.0 (IC)
4.Component Size: 03015 to 12mm, Height 10mm (HS10-type)

GET A QUOTE

Description

The new generation mid-speed pick-and-place machine S2

Easy Operation: It allows the mixed use of pneumatic and electric feeders and supports Smart Feeders.

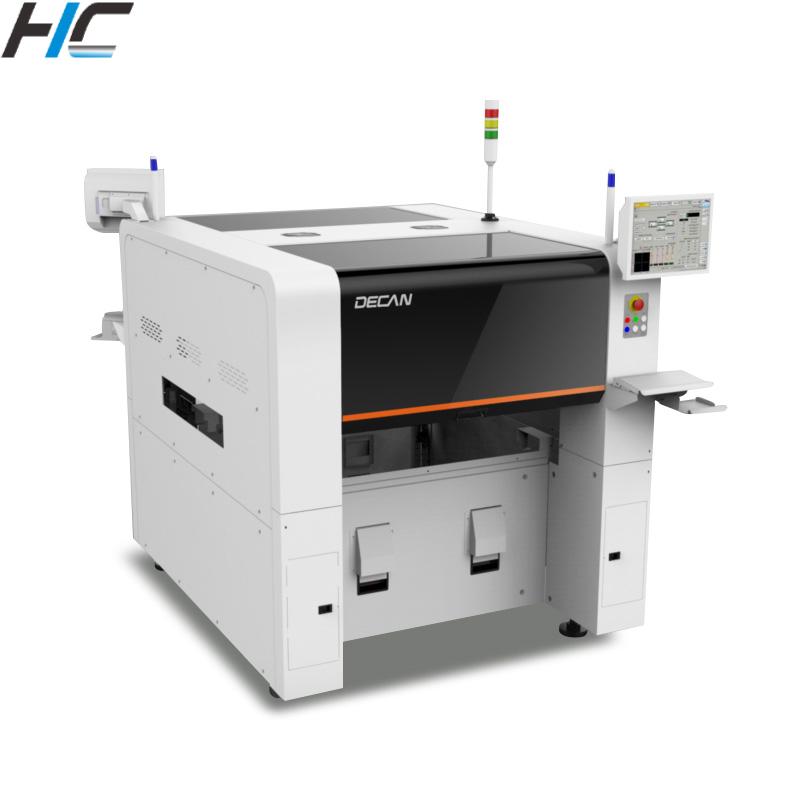

Product Name: New Generation Mid-Speed Machine DECAN S2

1. Structure: 2 Gantries x 10 spindles per head

2. Speed: 92,000 CPH (Optimum, HS10-type)

3. Accuracy: ±28μm Cpk≥1.0 (03015), ±25μm Cpk≥1.0 (IC)

4. Component Size: 03015 to 12mm, Height 10mm (HS10-type)

PCB Size:

1. Max. 510 x 460 (Standard)

2. Max. 740 x 460 (Optional)

3. 1200 x 460 (Optional, Available from Sep. 2015)

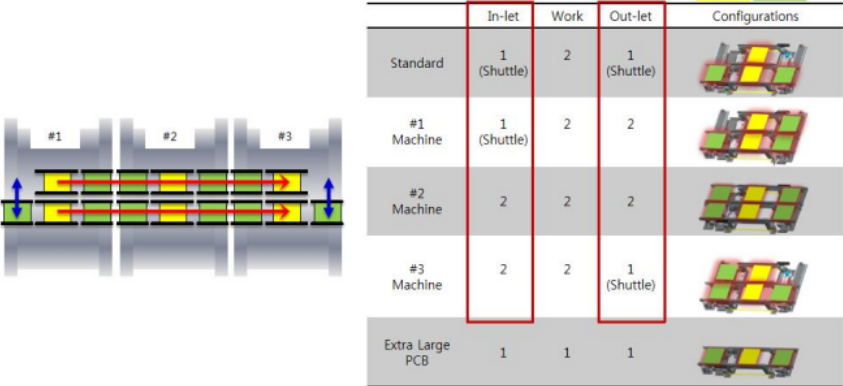

Offers a variety of PcB flow options

Supports an on-site replaceable Modular Conveyor System,
allowing for the production of awide range of products

The lN/OUT Conveyor Module can be quickly swapped on-site between shuttle and Dualmodes.
(The IN/OUT Conveyor Module can be rapidly changed on-site between shuttle andDual modes.)

The New Generation Mid Speed Pick And Place Machine S2

· High Performance: 2 Gantries, Flying Vision Head, 92,000 CPH (Optimum, HS10 Head)

· High Reliability: Utilizes Linear Motors for high precision and low noise, with accuracy of ±28μm @ Cpk≥1.0 (03015)

· Flexible Production: Modular Conveyor System supports PCB sizes up to 740mm x 460mm

· Easy to Operate: Compatible with both pneumatic and electric feeders, and supports Smart Feeders

The New Generation Mid Speed Pick And Place Machine S2

Increase Actual Production Capacity

Improve Flying Vision

Enhanced LED quality at each head position to reduce lighting deviations
Improve the visual recognition differences between heads

Improve the contrast in coaxial illumination

Remove ghosts caused by coaxial illumination and improve component
recognition rate

Improve S/: Increase mounting speed(80,000 CPH -> 92,000 CPH)

Reduce cycle time

Allocate local reference points based on the number of placements
percycle (↓5 ms)

Change Z-Axis Inposition Count (51 µm -> 66 µm)

Minimize height deviation during placement

The New Generation Mid Speed Pick And Place Machine S2

High-precision placement

Achieve Placement Accuracy ±28um (03015)

Improve visual recognition and placement accuracy of 03015 components
By reducing the FOV (24mm to 20.5mm),Increase the number of pixels per unit ( 6.5 -> 7.6)

Improve X-axis position precision (resolution: 3um->2um)
Change X-Ball screw configuration (Pitch: 30mm -> 20mm)
Relieve load rate by changing motor configuration

Improve Y-axis position precision (resolution: 3µm -> 2µm)

Change linear motor parameters (3µm->2µm)
