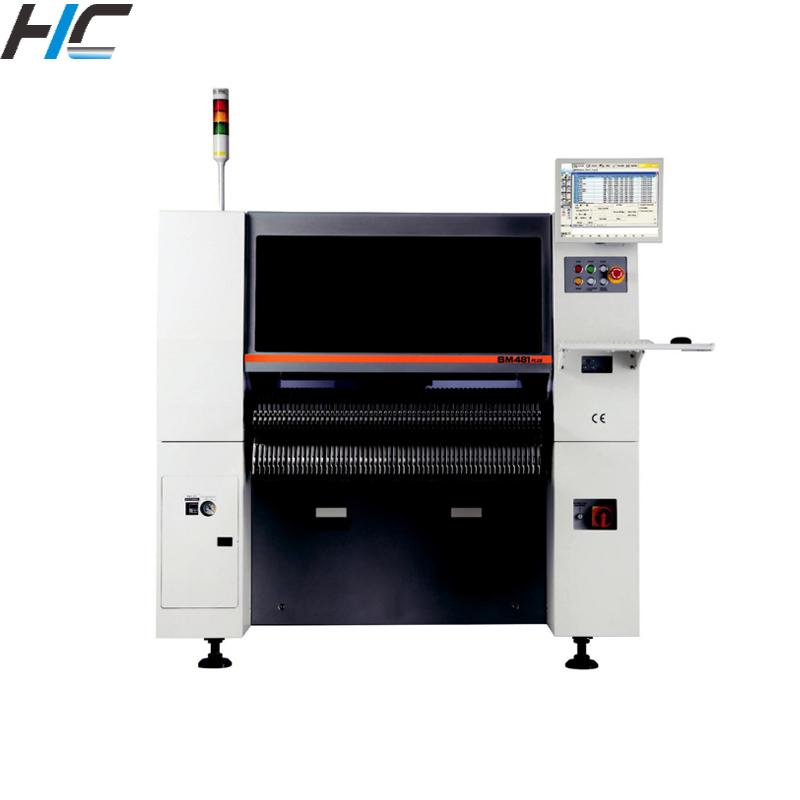

Samsung SMT machine SM481Plus
The SM481 Plus pick-and-place machine achieves high-speed placement by using TECHWIN's On-the-Fly recognition method, which allows for a placement speed of 40,000 CPH for chip components and a placement time of 1.1 seconds per unit for QFP components (under optimal conditions). It features a One-Gantry structure with a high-speed 10-nozzle piano-style head, enabling efficient operation with minimal manpower. The machine can handle PCBs up to 1,500mm in length, demonstrating strong PCB handling capabilities within the SM series.
Characteristics:
Mounting Speed: 40,000 CPH (Optimal)

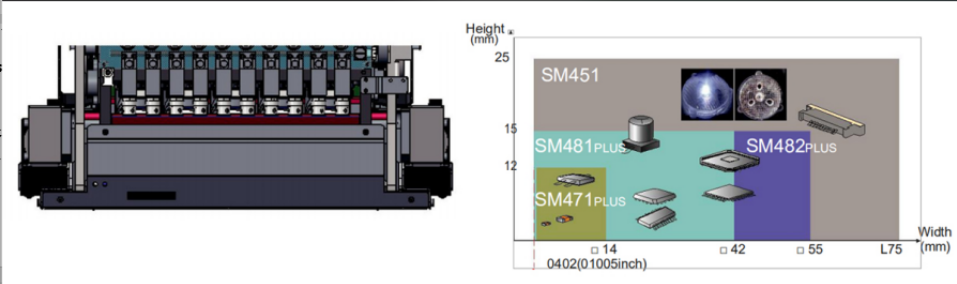

Component Size:
1. Minimum: 0402 (0.01005 inch)
2. Maximum: 42mm x 15mm
Mounting Accuracy:
1. Chip: ±40 μm @ ±3σ
2. QFP: ±30 μm @ ±3σ
PCB Size:
1. Standard: L460 x W400 x 1 Lane
2. Option: L1500 x W460 x 1 Lane

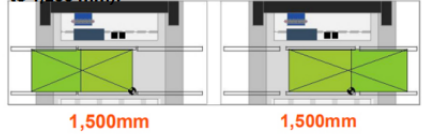

| 1.500mm Corresponding to the long board Using an extended conveyor for a two-segmentdivision mounting, it can accommodate PCBs up to 1,500 mm (while the SM482 PLUS can handle upto 1.200 mm) | One-Side Operation One Gantry, with a single-rail structure, is optimal for single-side operation equipment,effectively utilizing production space and labor. |
