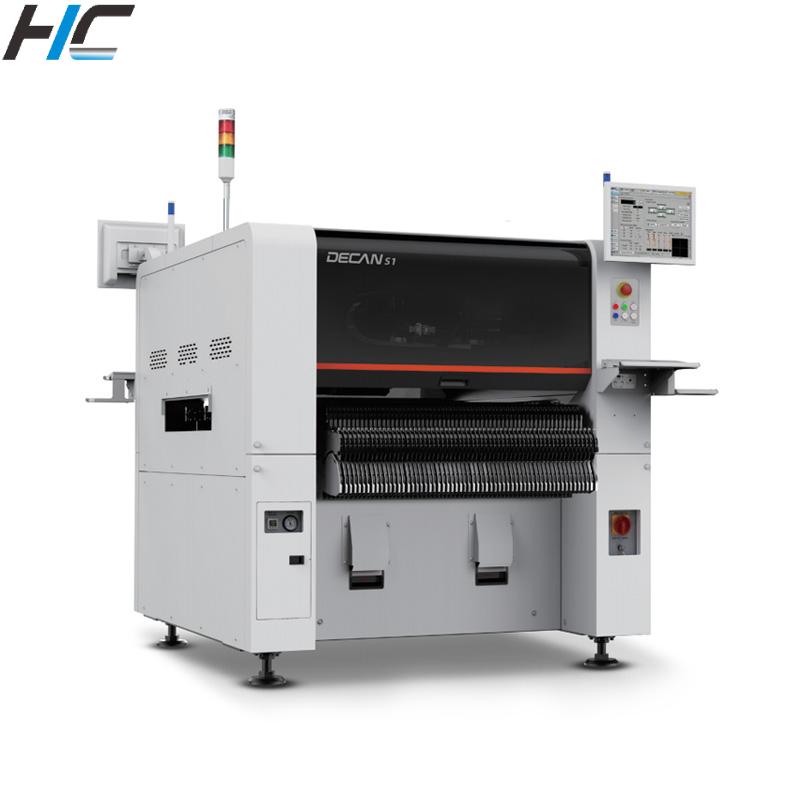

The new generation mid-speed pick-and-place machine S1
This equipment was developed to significantly enhance three key performance indicators of the pick-and-place machine, providing optimal productivity for small-lot, high-mix production.
Features:
1. Increase actual productivity
2. Improve placement quality
3. Reduce the rate of component rejection
This equipment was developed to significantly enhance the three key performance indicators of the pick-and-place machine, providing optimal productivity for small-lot, high-mix production.
Best equipment status management |

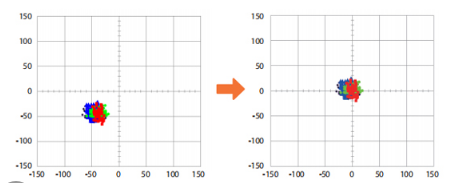

By using automatic calibration and continuous management, |
Enhanced PCB handling capability/Enhanced DECAN line-up |

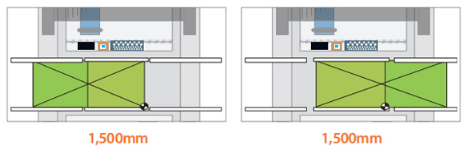

Can produce PCBs measuring 1,500 mm (L) x 460 mm (W) and |
The new DECAN Series equipment has enhanced the DECAN line-up |
STF100D (Dual Magazine Feeder) |
It features a 12-pallet, 2-level magazine structure,Component trays can be replaced without stopping the equipment. |
It can supply a wide variety of non-standard components in large quantities |
24 stations with 24 trays or 48 trays. |
STF100S (Side Tray Feeder) |
Side component supply unit |
By utilizing a 100% rear feeder base, |
By installing connection CN, |
Replace component trays for each pallet while the equipment remains running. |
STF100N |
Replace component trays for each pallet while the equipment is still running. |
20 stations with 20 trays or 40 trays. |
1paragraph Tray Feeder |
Can be easily installed or removed on the feeder base |
Capable of high-speed component suction |
Trays can be installed either horizontally or vertically according to their shape |
Use of trays：2",4",136mmx316mm, 200mmx316mm,272mmx316mm |
