Features:
High Speed: Faster than similar devices, with a compact size and flexible wiring.
Simple Design: Easy installation and debugging with a straightforward stack layout.
High Return on Investment: Offers excellent ROI.
Suitable Applications:
Environments with few types of materials or a high number of repetitive components.
Production scenarios with high capacity requirements.

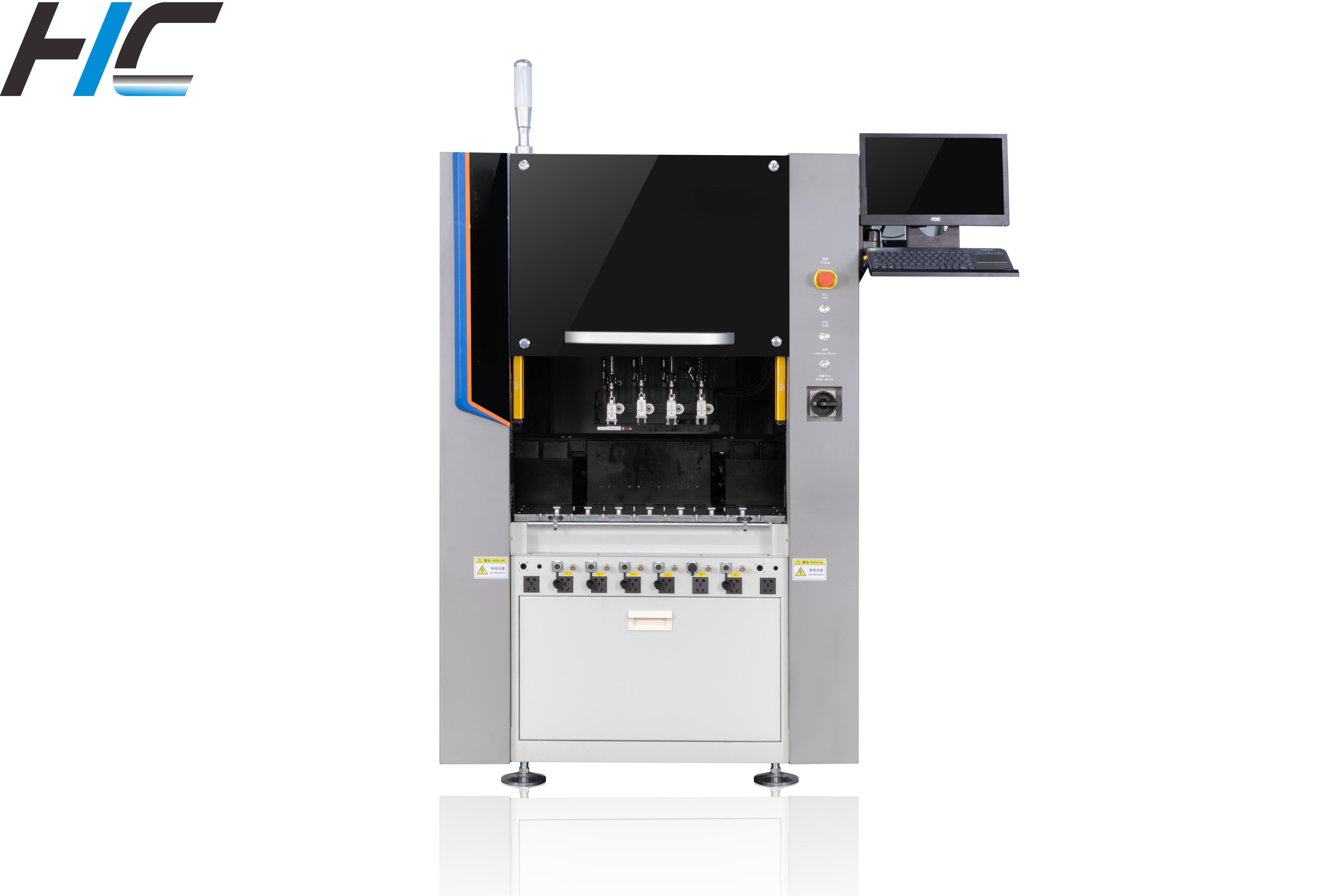

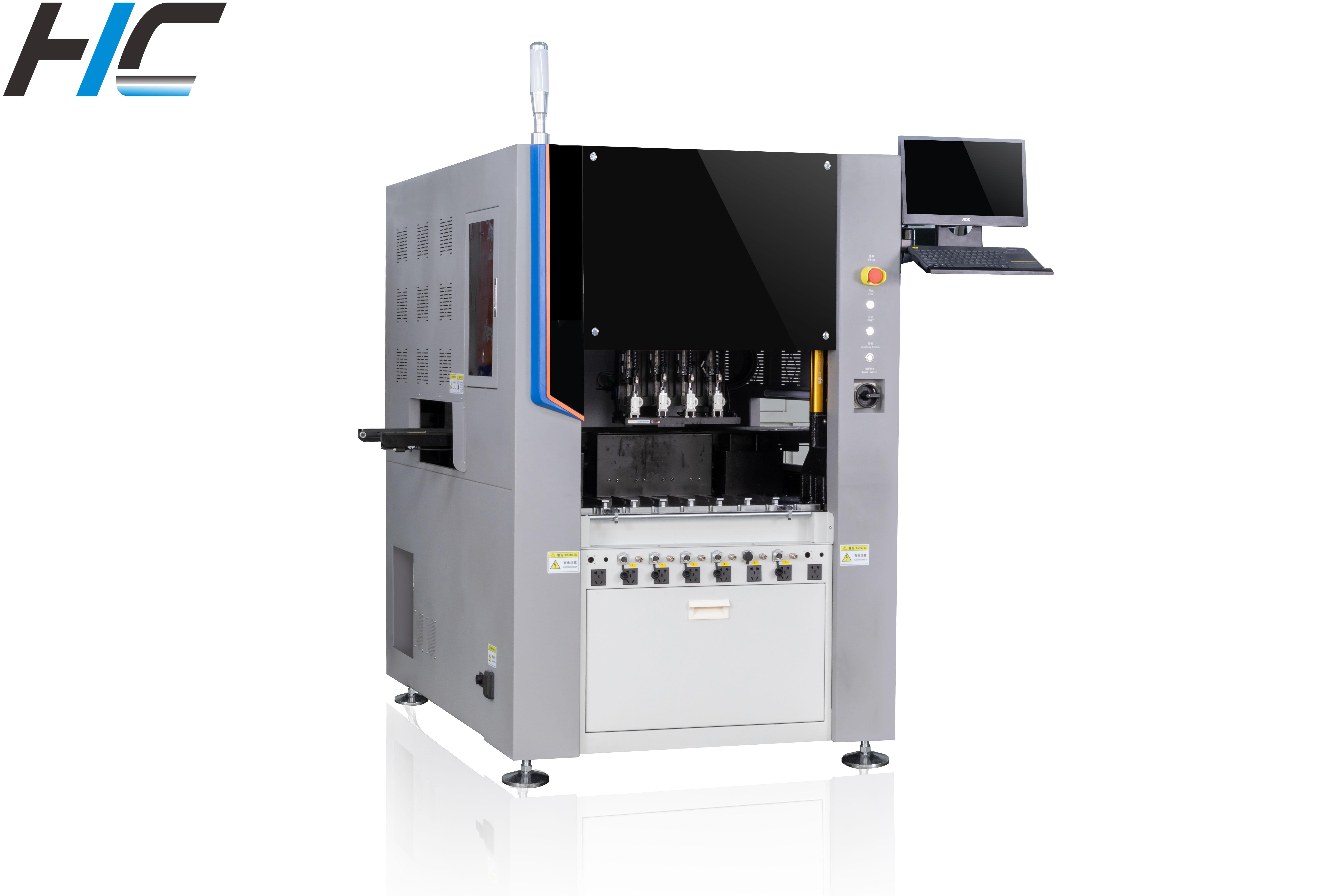

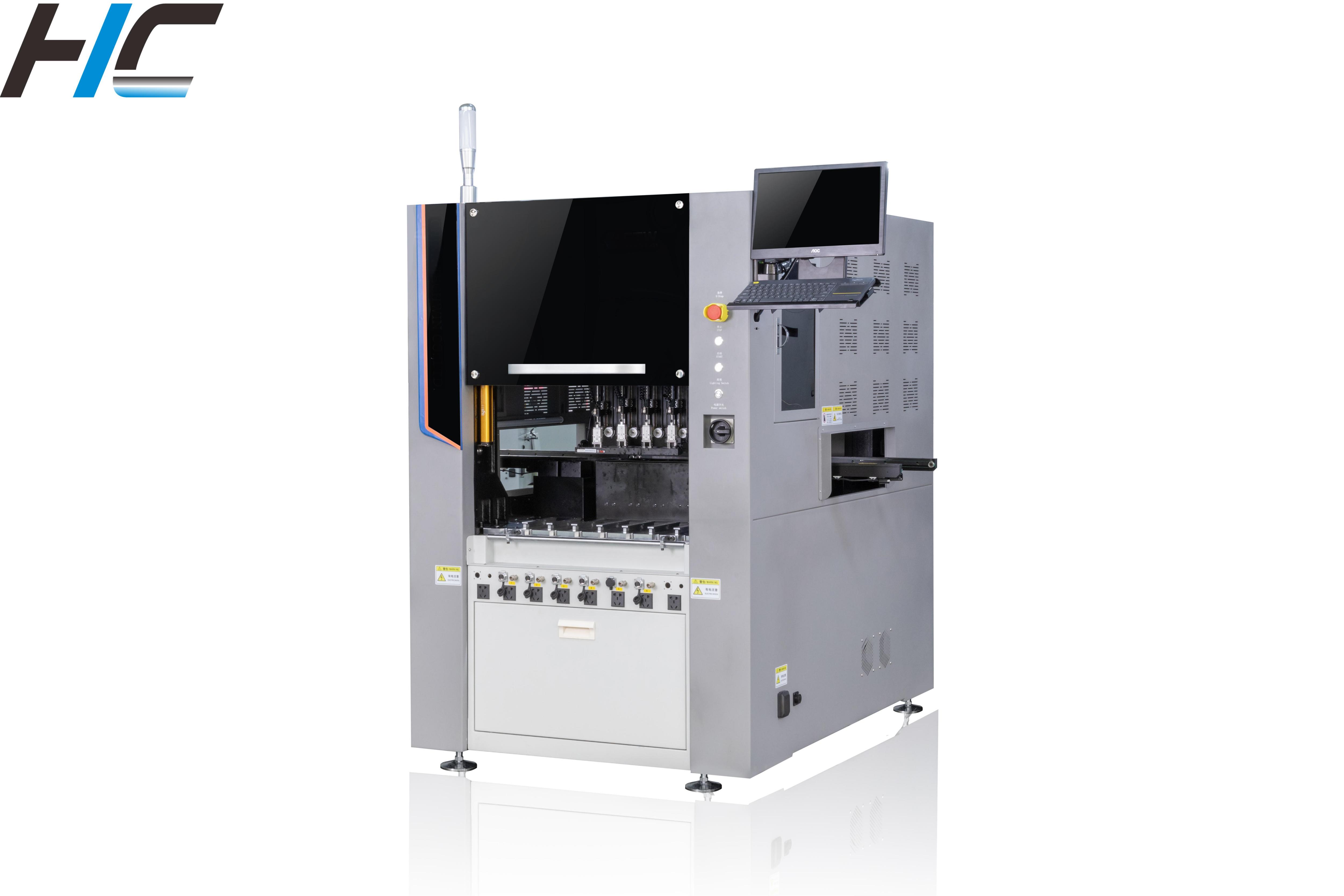

CAM-18

characteristic：

1. Higher Speed Compared to Similar Equipment

2. Compact Size with Flexible Wiring

3. Simple Stack Layout, Easy to Install and Debug

4. High Return on Investment

Applicable Scenarios：

1. Fewer Material Types or High Proportion of Repetitive Components

2. High Production Capacity Requirements

technical parameter
Track Adjustment Method	Automatic Adjustment	Component Positioning Accuracy	±0.025mm
Board Transfer Method	Inline	Insertion Positioning Accuracy	±0.05mm
PCB Board Transfer Direction	Left/Right/Center	Insertion Pressure	0-40N
Maximum Transfer Speed	20m/min	Drive Axis	X/Y/Z/U
PCB Board Edge Clearance	>5mm	Work Voltage	AC220V, 50Hz
PCB Fixing Method	Machine Fixed and Visual Positioning	Total Power	<4KW
PCB Fixing Method	Fixed by Machine Vision	Air Pressure Requirement	0.5-0.7MPa
Plug-in Angle	Any Angle	Air Consumption	<50L/min
Plug-in Extraction Method	Pneumatic Claw, Suction Disk	Track Height	920±20mm (Adjustable)
Feeding Method	Belt, Tray, Tube, Disk	Machine Noise	<75dB

Technical Parameters
Equipment outer color size	L1500W1680H1670
Equipment weight	1700KG
Quantity measurement of material clamp	4
Quantity of material rack stack positions	6
Applicable dimensions for substrate	L50W70T0.75~ L400W400T4.5
Plugin coverage range	L320*W400
Applicable component size	L3W3H3~L35W35H40
