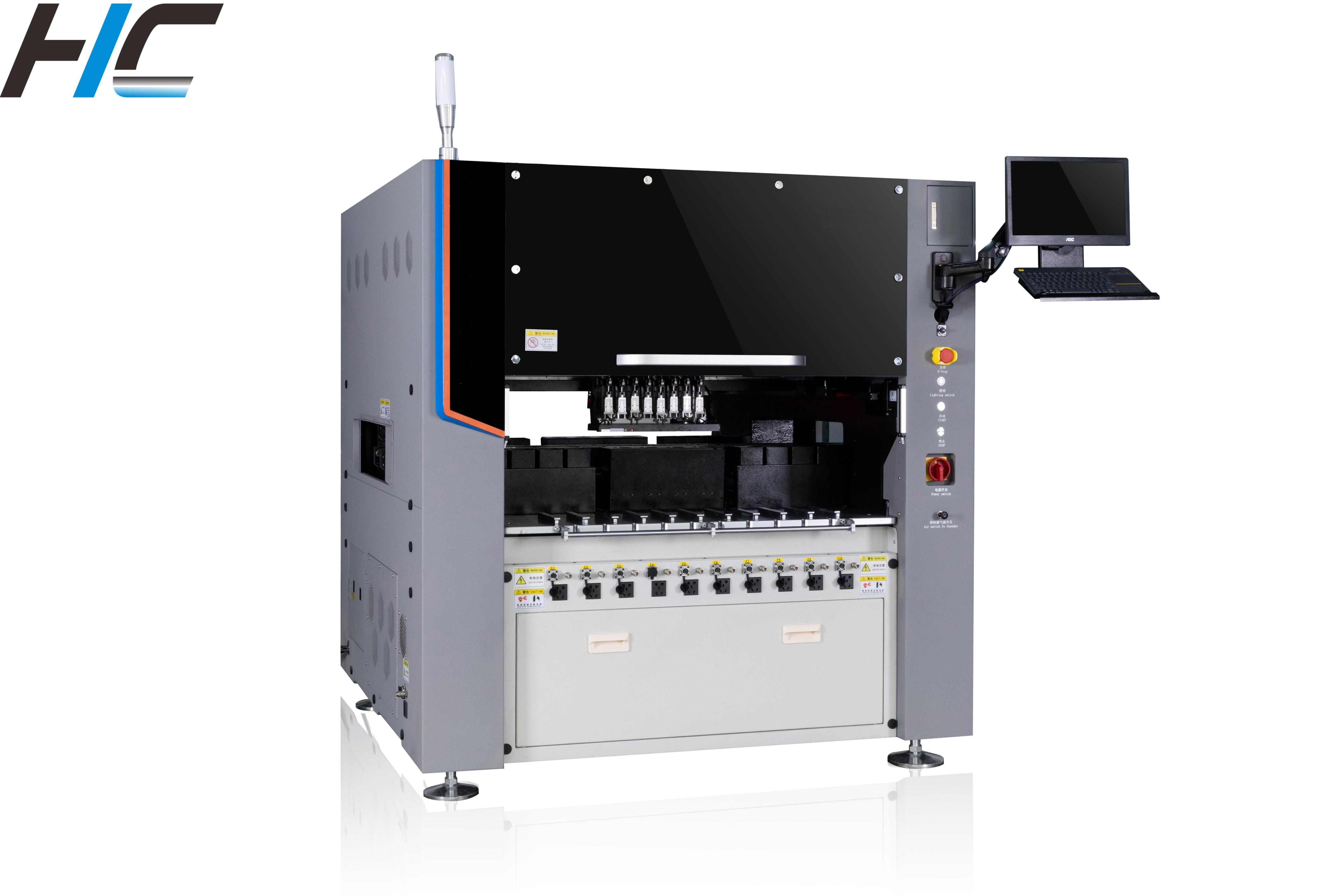

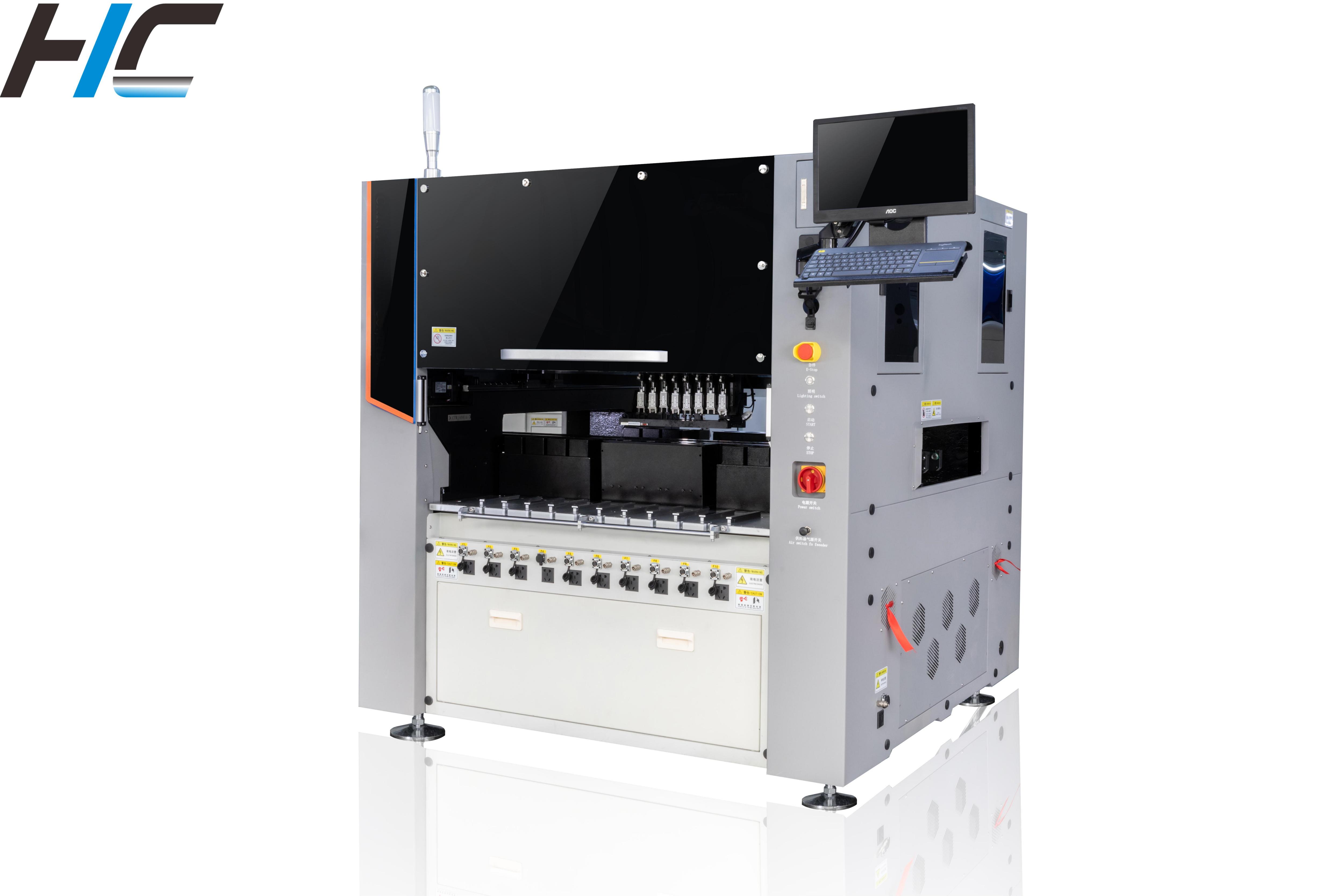

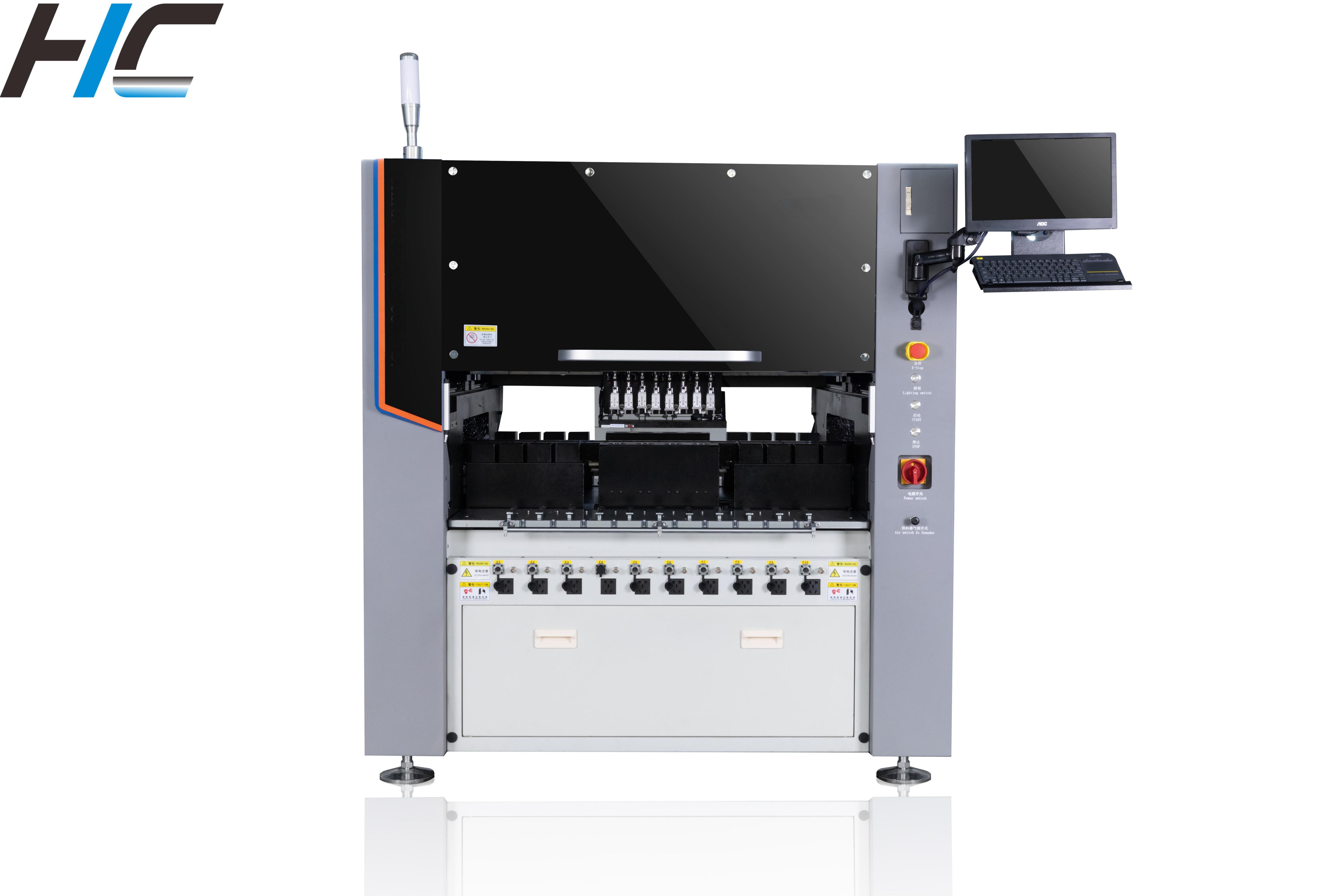

CAM-20M
characteristic：
1. Higher Speed Compared to Similar Equipment
2. Compact Size with Flexible Wiring
3. Simple Stack Layout, Easy to Install and Debug
4. High Return on Investment
Applicable Scenarios：
1. Fewer Material Types or High Proportion of Repetitive Components
2. High Production Capacity Requirements
General technical parameter | |||
Track Adjustment Method | Automatic Adjustment | Component Positioning Accuracy | ±0.025mm |
Board Transfer Method | Inline | Insertion Positioning Accuracy | ±0.05mm |
PCB Board Transfer Direction | Left/Right/Center | Insertion Pressure | 0-40N |
Maximum Transfer Speed | 20m/min | Drive Axis | X/Y/Z/U |
PCB Board Edge Clearance | >5mm | Work Voltage | AC220V, 50Hz |
PCB Fixing Method | Machine Fixed and Visual Positioning | Total Power | <4KW |
PCB Fixing Method | Fixed by Machine Vision | Air Pressure Requirement | 0.5-0.7MPa |
Plug-in Angle | Any Angle | Air Consumption | <50L/min |
Plug-in Extraction Method | Pneumatic Claw, Suction Disk | Track Height | 920±20mm (Adjustable) |
Feeding Method | Belt, Tray, Tube, Disk | Machine Noise | <75dB |
Technical Parameters | |
Equipment outer color size | L1600*W1600*H1670 |
Equipment weight | 1400KG |
Quantity measurement of | 6 |
Quantity of material rack | first 8 and the last 8/ |
Applicable dimensions for | L50*W50*T0.75~ |
Plugin coverage range | L400*W400 |
Applicable component size | L3*W3*H3~L35*W35*H40 |
