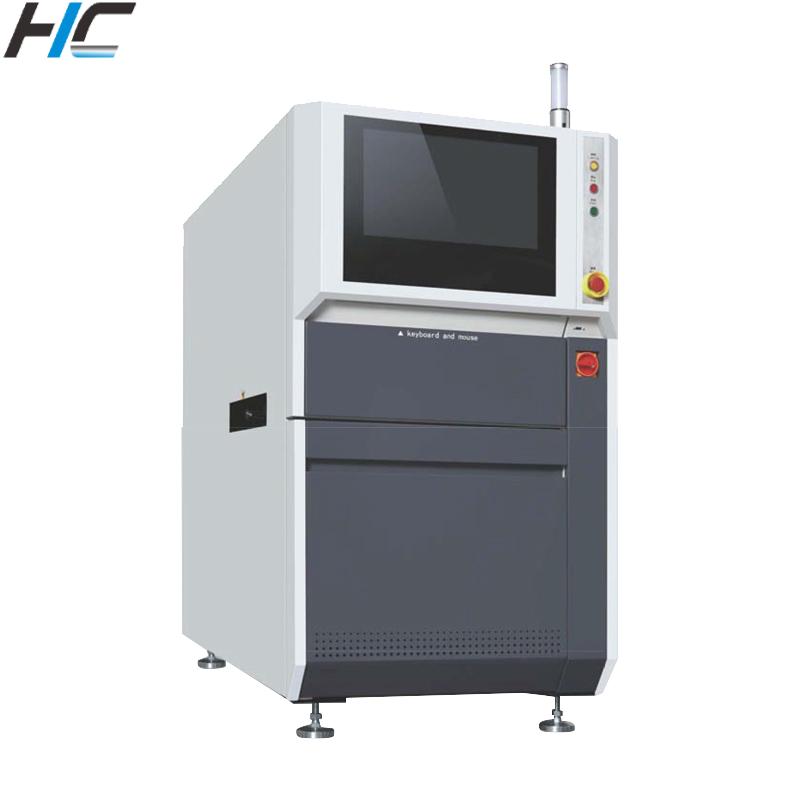

TOP-BOTTOM Laser Marking Machine

1. Equipped with an XY precision platform, CCD + MARK for accurate positioning.
2. Marking position accuracy within 0.02mm.
3. Capable of engraving Chinese characters, English letters, numbers, icons, serial numbers, logos, barcodes, QR codes, and other content.
4. Can be integrated with ShopFloor/MES systems and supports importing documents such as Gerber and DXF.
5. Complete visual operation with grade re-evaluation functionality.

TOP-BOTTOM laser marking machine

Fully automatic control with a bilingual graphical interface in Chinese and English, and Windows 10 operating system.

1. Equipped with an XY precision platform, CCD + MARK for accurate positioning.

2. Marking position accuracy within 0.02mm.

3. Capable of engraving Chinese characters, English letters, numbers, icons, serial numbers, logos, barcodes, QR codes, and other content.

4. Can be integrated with ShopFloor/MES systems and supports importing documents such as Gerber and DXF.

5. Complete visual operation with grade re-evaluation functionality.

Product Name	TOP-BOTTOM laser marking machine
Model No.	RTM-C510TB/RTM-U510TB/RTM-F510TB
Laser type	CO2/UV/FIBER
Laser wavelength	10600nm/355nm/1064nm
Laser power	10W/5W/20W
Laser cooling method	Mandatory Air Conditioning
Laser electricity	0.08mm
Way to work	/laser Move
The basic specifications
Repeat positioning accuracy	±0.02mm
Operational height	900+20mm( adjustable)
Size	1.5*1.5mm
Positioning system	CCD+Mark positioning
ControlSystem	PC+Shaft Card+Servo
Barcode detection system	CCDonlinereadingdetection
Maximum PCB size	5050-510460
Permissible deformation of PCB	<3mm
PCB thickness	0.5-3mm
PCB Pass height	UP:10mm DOWN:10mm
Track transmission speed	0-3000mm
Direction of tracktransmission	Left→Right Right→Left (optional)
Track width adjustment	Automatic adiustment
Engraving object/Type	character/barcode/Qrcode/graphic data
Smoke treatment mode	Smoke purification system
Softeare	Self-developed,more variable service
Software interface	Chinese or Englishinterface
Poka-yoke function	Yes
Defective board recognition function	Yes
Bar code data source	Obtain from MES,or generate automatically
System connection function	Access to smart managementsystems such as Shopflor,MES,IMS,etc
Bar code level analysis	Support
Engraving angle	0-360°
other
Input voltage	AC220V /7A 50Hz
Pneumatic supply	5-7Kgf/cm' or 0.5-0.7MPa
Environmental requirement	0-40℃ 35-85%RH
Equipment power	1.5KW
Size of the machine(Long"width*high)	98017501650
Equipment weight	800kg
