2D-AOI

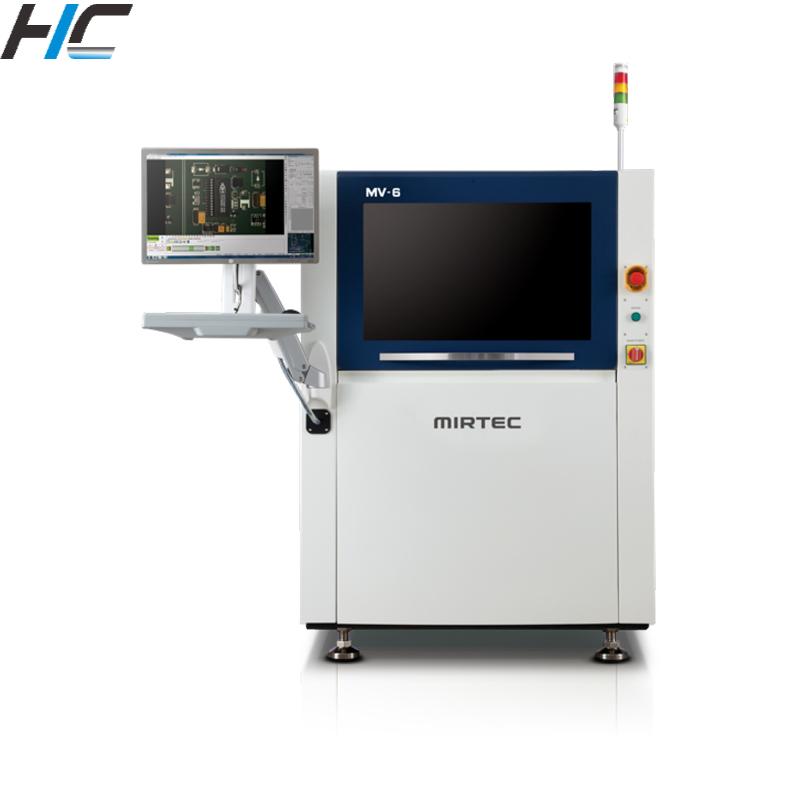

2D AOI is an inline AOI product that can be installed before or after the reflow oven to inspect the placement and soldering status of components. As an inline vision inspection device, it is equipped with an 18-megapixel camera, laser scanning, an 18-megapixel side camera, and an 8-segment color lighting system. It is suitable for various production processes and serves as a comprehensive inline vision inspection system.
Model | MV-6 | |||
Type Code | Single Stage Conveyor (Standard) | MV-6_M_ISIS_S_SL | MV-6_M_ISIS_S_DL | |
Triple Stage Conveyor (Option) | MV-6 M ISIS T SL | MV-6 MISIS T DL | ||
Maximum PCB size range | ||||
AOI Inline | Single Stage Conveyor (Standard) | 50x50~510x460 mm | 50x50~510x300 mm(D) | |
Triple Stage Conveyor | Type 1 | 50 x50 ~ 330 x 460 mm | ~ | |
Type 2 | 50 x50~510 x460 mm | ~ | ||
Detection speed | ||||
18 Megapixel Camera | CoaXPress | 7.3 μm | 3,213mm’/ Sec | |
9.8 um | 5,604mm?/ Sec | |||
14 Megapixel Camera | CoaXPress | 13.4 um | 7,974mm?/Sec | |
10 Megapixel Camera | Camera Link | 9.8 um | 3,007mm?/Sec | |
13.4 um | 5,293mm?/Sec | |||
Testing items | ||||
The fastest detection speed | 7.3 μm | 0201 Chip (mm)/0.3 Pitch (mm) | ||
9.8 μm | 0402 Chip (mm)/01005 Chip (inch)/0.3 pitch (mm) | |||
13.4 um | 0603 Chip (mm)/0201 Chip (inch)/0.4 pitch(mm) | |||
System specifications | ||||
lighting | 8-section coaxial color lighting system | |||
Side view camera system（option） | 1800/1000000 pixel digital color side view camera (4 units) | |||
Laser detection system | Intelligent scanning | Laser resolution | 1.5 um/ Point | |
measurement accuracy | 士10 um | |||
Software | standard | Built in SPC,Built in maintenance software | ||
Optional | RMS, RRS, IRS,OLTT,RDS,Remote Control SPC,ePM-AOI | |||
Front gap of printed circuit board | 45mm | |||
Gap on the back of printed circuit board | 50mm0.5mm~5mm | |||
Maximum weight of printed circuit board | 4kg | |||
Robot positioning system | X/ Y | Opportunistic motor system | ||
Power requirements | Single phase 200~240V 50~60Hz. 1.1kw | |||
air pressure | 5 Kgf/ cm? (0.5 MPa), 5 LPM | |||
Size and weight | ||||
size(mm) | Machine | 1,080(W) x 1,470(D)x 1,610(H) | 1,080(W) x 1,470(D)x 1,610(H) | |
Width | Single Stage Conveyor | 1.110 | 1,110 | |
Triple Stage Conveyor (Option) | 1,270/1,450/1,630 | ~ | ||
weight | Single Stage Conveyor | about 900 kg | about 950 kg | |
Triple Stage Conveyor (Option) | about 930 kg | ~ | ||
