MEKA-2D AOI

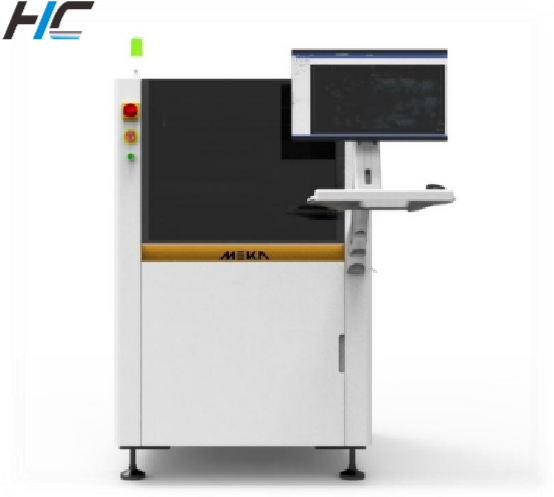

MEKA-M2/M2D 2D AOI Automated Optical Inspection Systems

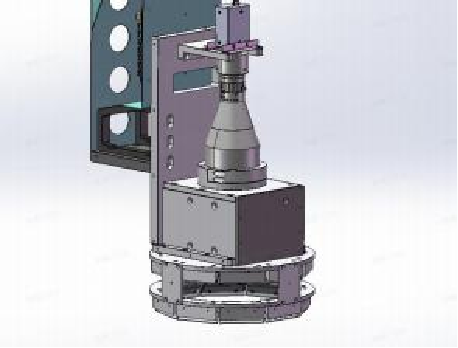

Multi-angle lighting system for precise inspection

• Multi-angle colored lighting for precise solder defect inspection

• Paired with coaxial lighting to avoid shadowing from tall components

• High-contrast, low-angle lighting significantly enhances silkscreen text clarity

• Customizable lighting combinations for highly tailored defect detection capability

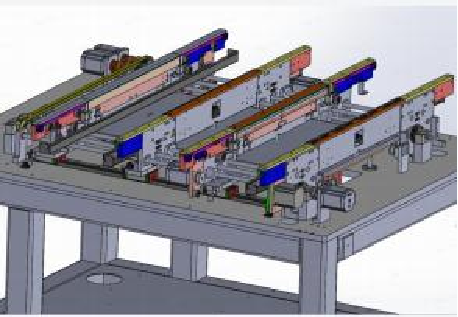

Ultra-high compatibility PCB conveyor

• Dual stop sensors to accommodate slotted PCB boards

• Adjustable clamping components compatible with PCB boards without process edges

• Adjustable stopper mechanism with sensor-based stop function to solve uneven board stopping issues

• Standard equipped lifting platform mechanism to flatten warped or heavy boards

Smart Programmin

• Achieve intelligent and efficient programming, significantly increase programming speed.

• Match components based on material appearance, find the most similar components for retrieval and use, and enable one-click rapid programming.
