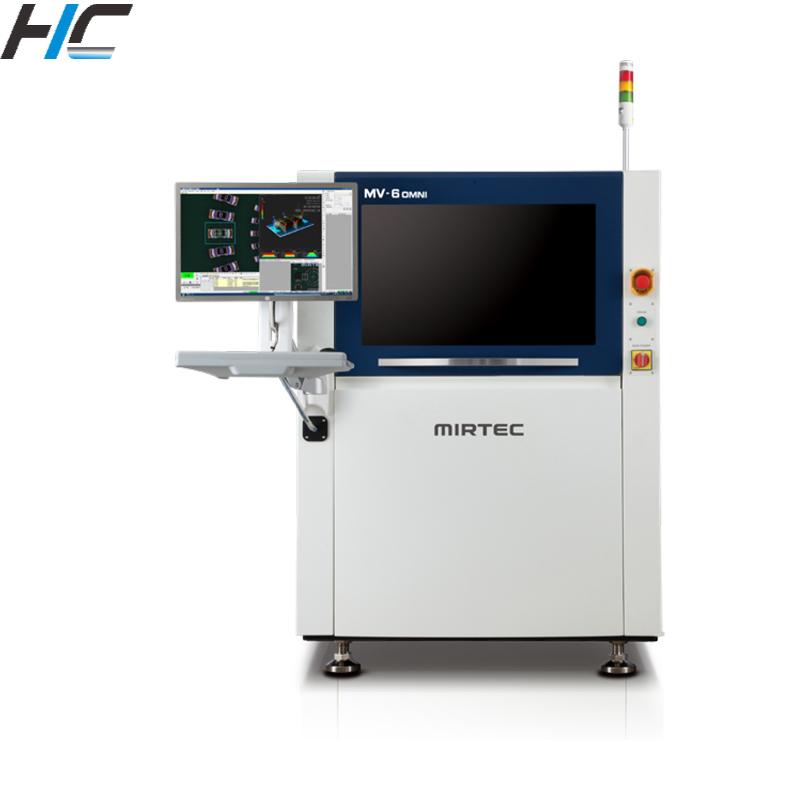

MIRTEC-3D AOI

Type Code

Single Stage Conveyor (Standard)

MV-6_M_OMNI_S_SL

MV-6_M_OMNI_S_DL

Triple Stage Conveyor (Option)

MV-6_M_OMNI_T_SL

MV-6 M OMNIT DL

Maximum size range of printed circuit board

AOI online

Single Stage Conveyor (Standard)

50x50~510 x460 mm

50x50~510x300 mm(D)

50x50~510x590 mm(S)

Triple Stage Conveyor  Type l
               (Option)                            Type 2

50x50~330 x460 mm

~

50x50~510x460 mm

~

OMNI-Vision @ 3D/2D Inspection Technology

3D Inspection Technology

Digital 12-Projection Moiré Technology

High Precision

±3 um

Fastest 3D/2D Inspection Speed

25-Megapixel Camera   (option)

7.7 um

1.460mm²/Sec

15-Megapixel Camera

10 um

1,890mm²/ Sec

15 μm

4,260mm²/Sec

Fastest 2D Inspection Speed

25-Megapixel Camera   (option)

7.7 um

4,593mm/Sec

15-Megapixel Camera

10 μm

5,080mm?/Sec

15 μm

10,716mm?/Sec

System Specifications

Lighting System

8-Segment Coaxial Color Lighting System

Side Camera System

option

18/10-Megapixel Digital Color Side Cameras (4 Units)

Software

standard

Built-in SPC (Statistical Process Control) and Built-in Maintenance   Software

Optional

RMS,RRS,IRS,OLTT,RDS,Remote-Controlled SPC,ePM-AOI

Front-to-Front Spacing of PCB

45mm

Back-to-Back Spacing of PCB

50mm

maximum PCB thickness

0.5mm~5mm

Maximum PCB weight

4kg

Minimum measurement size

7.7 um

03015 Chip (mm)/0.3 Pitch (mm)

10 μm

03015 Chip (mm)/0.3 Pitch (mm)

15 μm

0603 Chip (mm)/0201 Chip (inch)/0.4 Pitch (mm)

Mechanical positioning system

X/Y

Opportunistic motor system

Power requirements

single-phase   200~240V   50~60Hz.1.1kw

air pressure

5 Kgf/ cm? (0.5 MPa), 5 LPM

Size and weight

Size

Machine

1,080(W)x1,470(D) x 1,610(H)

1.080(W) x 1,470(D) x 1.610(H)

Width                              Single Stage Conveyor (Machine& Conveyor)      Triple Stage Conveyor
      (Option)

1,110

1,110

1,270/1,450/1,630

~

weight

950 kg

 1,000 kg
