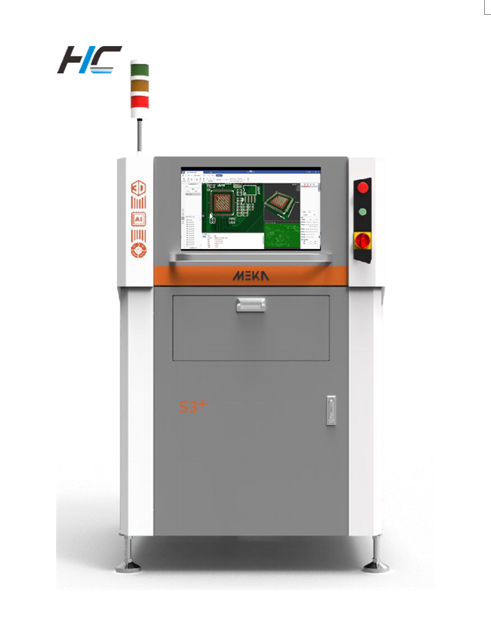

The MEKA-S3 PLUS is a high-precision laser marking and inspection system designed for the demanding requirements of fine circuit board inspection. It features bidirectional moiré pattern projection technology and is equipped with a 10 GigE camera, ensuring high accuracy and efficiency in inspection. The DLP 3D imaging technology of the MEKA-S3 PLUS provides stable and precise 3D inspection capabilities, making it especially suitable for inspecting high-precision circuit boards.
The device supports a maximum PCB size of 50x50 – 510x460mm and is compatible with PCB thicknesses ranging from 0.5 to 6mm, with inspection accuracy reaching ±1um. The system includes SPC (Statistical Process Control), non-substrate and soldering defect detection, crack defect detection, and various other intelligent functions, meeting the quality control requirements of modern production.

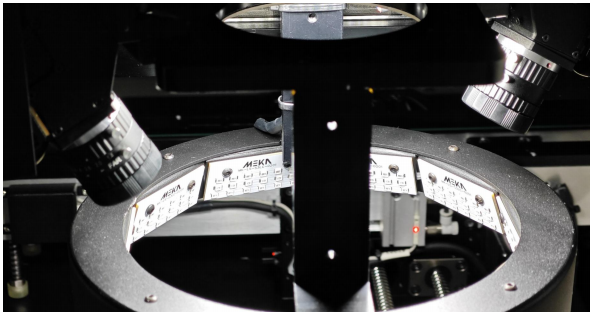

Camera

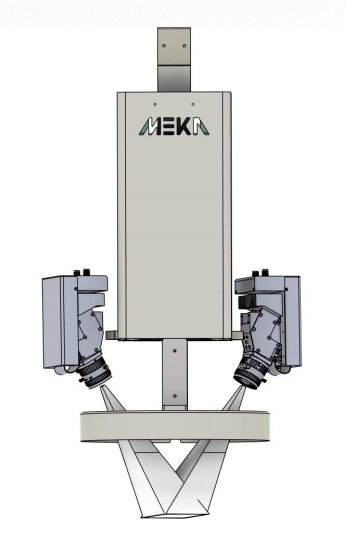

Equipped with bidirectional moiré pattern projection, a 10 GigE camera, ensuring high precision and efficiency.
Higher pixel density leads to more detailed inspection quality, standard dual HD DLP provides stable and precise 3D performance, ideal for precision circuit boards.

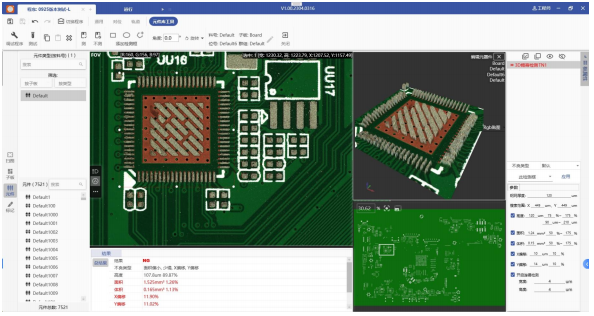

Software
Equipment details
Dimensions
Model | MEKA-S3 Plus | MEKA-S3D Plus | |
Maximum PCB Size Range | |||
In-line SPI | 50×50~510×460mm | 50×50~510×580mm(Dual) | |
Detection capability | |||
10um | 01005 Chip(inch) | ||
15um | 0201Chip(inch) | ||

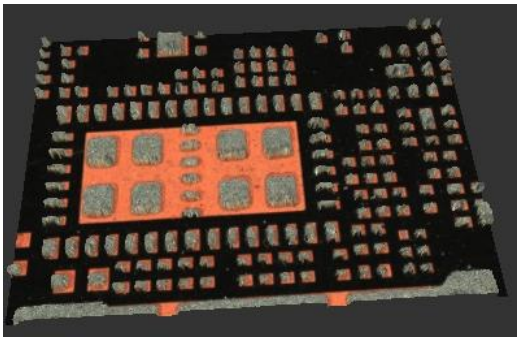

3D Detection Technology | |||
DLP | Bidirectional moiré projection | ||
Solder paste height | maximum | 400um | |
smallest | 40um | ||
High accuracy | ±1um | ||
Fastest detection speed | |||
16MP camera | 10um | 3,200mm²/Sec | |
System specifications | |||
PCB front clearance | 60mm | ||
PCB bottom clearance | 80mm | ||
PCB maximum weight | 4KG | ||
PCB thickness | 0.5~6mm | ||
System functions | Standard configuration | Built-in SPC, no GERBER programming, built-in review software, printing press feedback | |
Optional | Code reader, maintenance station computer, offline programming system, MES docking, SPC+ | ||
Power system | Single phase 200~240V50~60Hz, 1.1kw | ||
air pressure | 5Kgf/cm2(0.5 MPa),5LPM | ||
size and perspective | |||

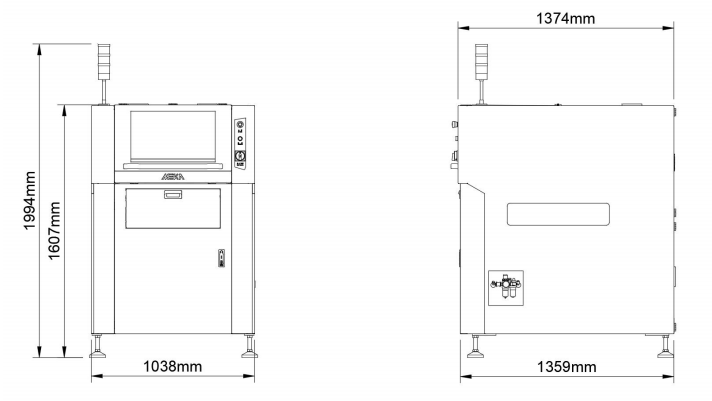

Dimensions(mm) | Machine | 1,038(W)x1,359(D)x1,607(H) | |
Width (Machine & Conveyor) | 1060 | ||
weight | 850KG | ||
