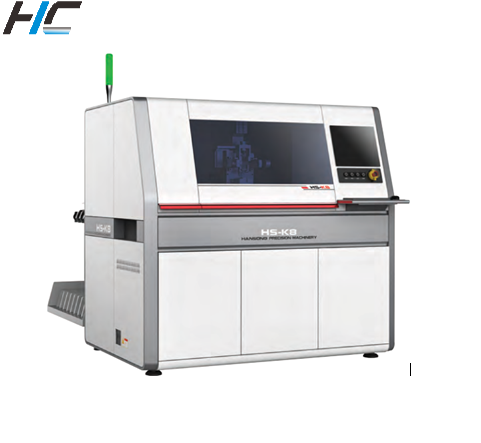

HCIE K series auto high speed insertion machine

 HCIE K series auto high speed insertion machine

High insertion accuracy Optimal insertion rate of 99.997%

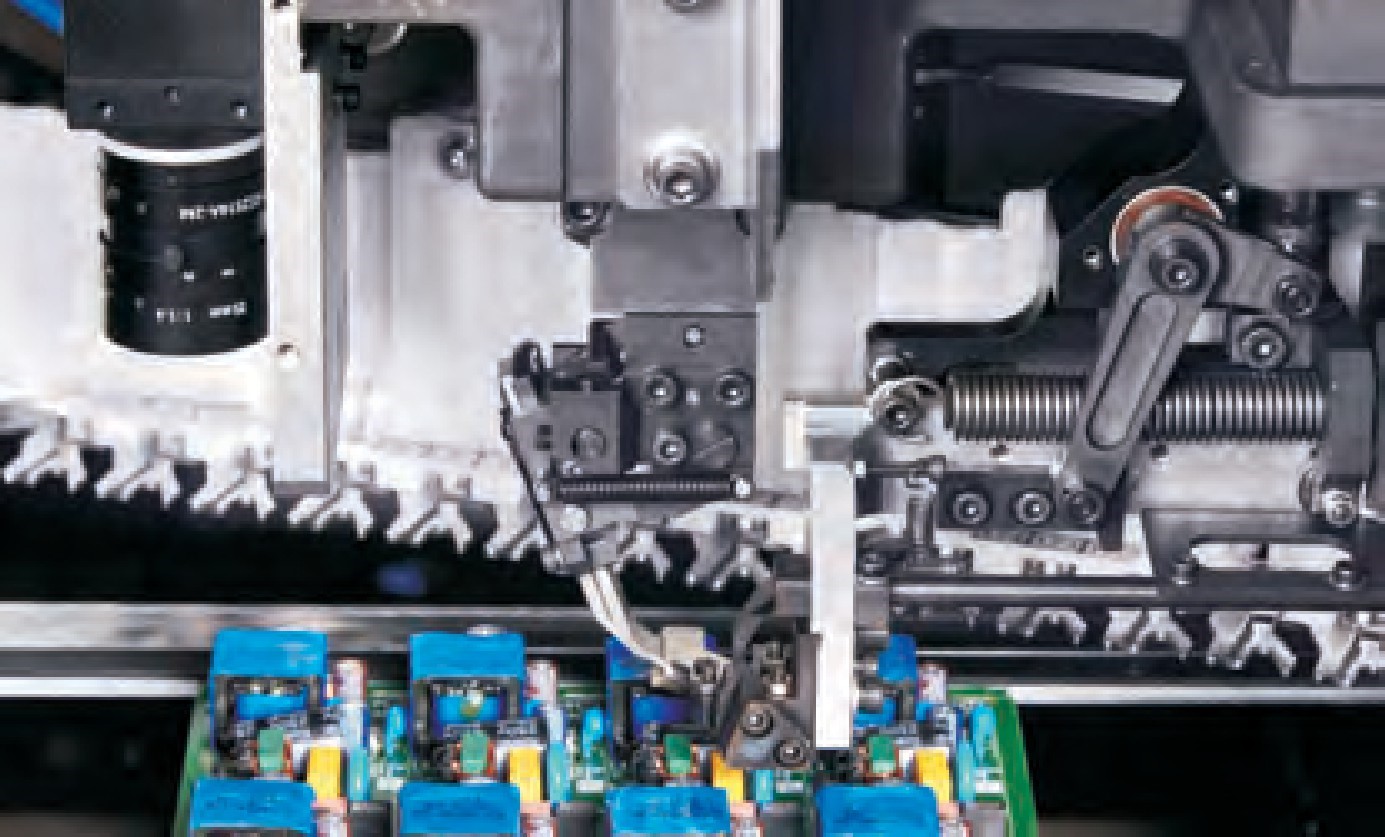

The high-precision visual coordinate positioning system calculates the best plug- in position through the position identification of all holes (2 holes or 3 holes) at the insertion position, and makes algorithm correction to assist the precision mechanical pin pin positioning system to realize stable plug-in implantation.

High precision, excellent stability Continuous operation shaft repetition accuracy up to 0.01mm

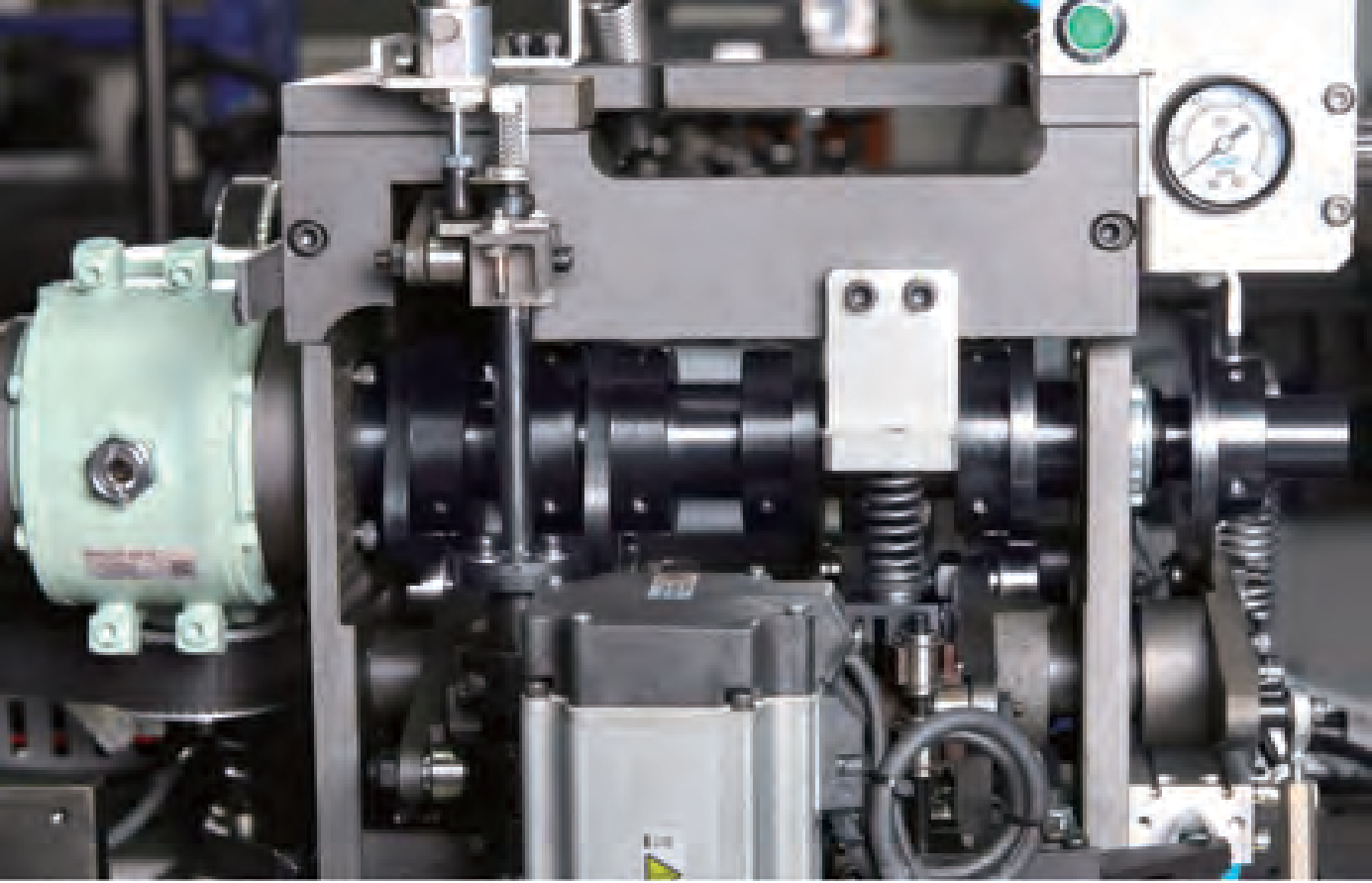

From the machine base, head base and parts to the material station, the integrated casting process and special stress resistance process are adopted in a wide range to ensure the overall reliability, cooperate with high-precision machining components, and realize the more lasting and stable operation of the equipment.

High adaptability Easy realization of automatic feeding, ultra-high density inserting and 90 degree bending lead insertion

New pin paper cutting mechanism with pin shaping to reduce materiai consumption; Equipped with full-automatic matorial replenishment and recavery function to automatically deal with plug-in errors to realize non-stop operation; it can also be easily realized for special plug-in requiremants such as pin 90 degree bending element, 3.5mm non-standard pin spacing and high-density implantation.

Innovative softwareSimplified programming, clear interface and easy operation

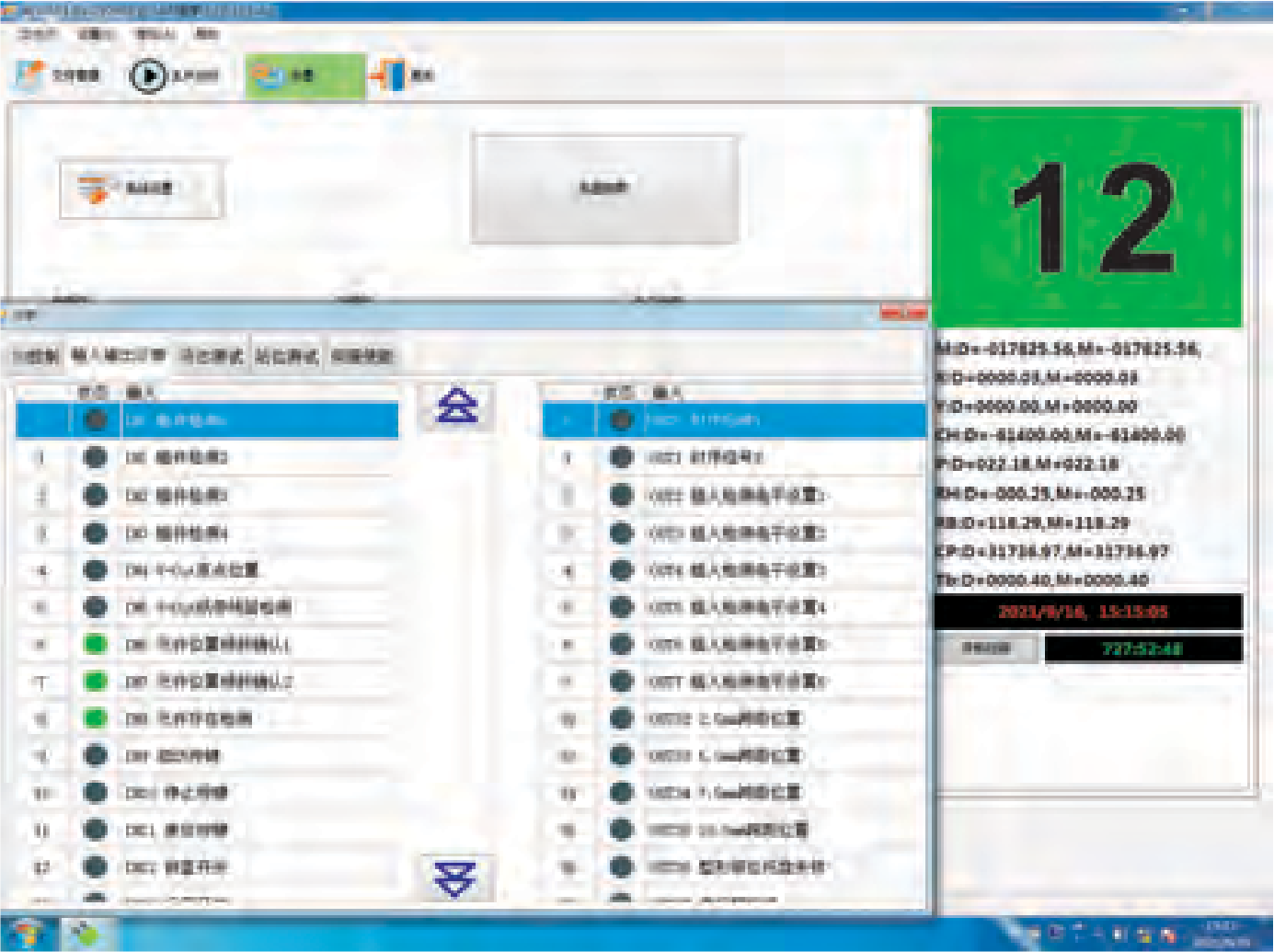

Friandly operation interface, throe-level authority setting, easy to deal with daily operation management such as operation command, parameter adjustment and operation information; Structured parameters can be grouped and archived independently to provide the best assintance for your production process;Industry4,0 centralized management, SPC data statistics, MES port docking and traceability management system (optional) can be easily tealized.

High efficiency production High-speed plug-in with 0.144s / point

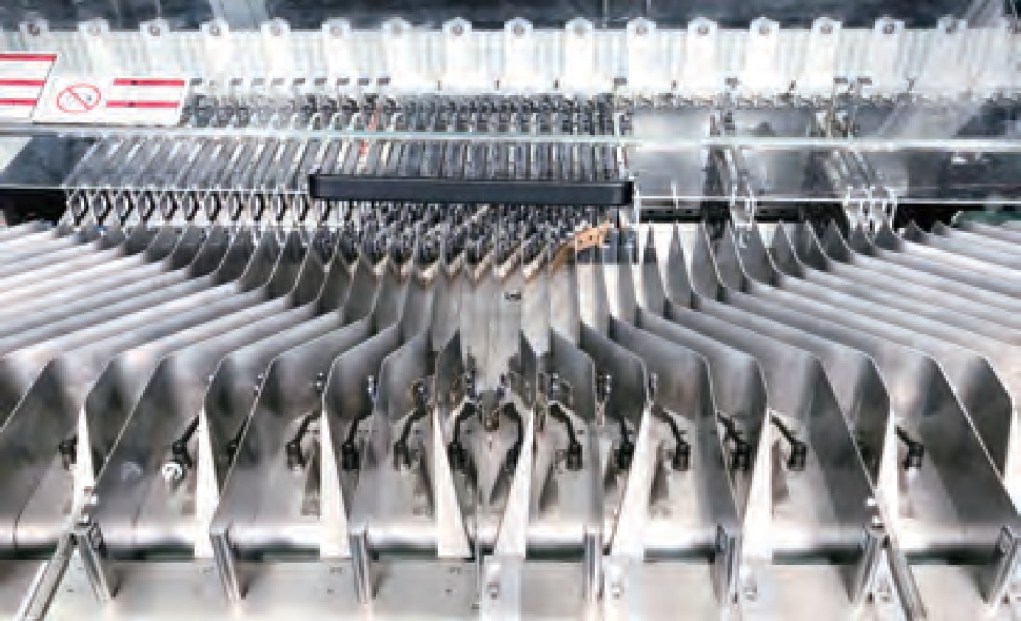

Through the component feeder material used up automatic inspection function,timely replenishment of materials to meet high efficiency production,Material station is designed in a separable way with multiple modes can be selected to replace materials in the production preparation stage (materials installation ) and production line replacement, so as to increase the use efficiency.

Highly integrated system Servo control main wire configuration

With fault self diagnosis, the error point can be accurately located in the man- machine interface, which is convenient for maintenance; The electrical circuit is simple and easy to understand, and the parameter adjustment of the main control interface is direct and clear; With strong anti-interference ability and high transmission accuracy, it is easy to realize after-sales remote control assistance.
